18TCHC/MEI2

TCL UNITARY Series Cassette

· Full DC Inverter
· Eco-friendly R32 Refrigerant
· -15-53℃ Wide Range Cooling
· -20-30℃ Wide Range Heating
· 56℃ Easy Self-cleaning
· Reserved Fresh Air
· WiFi Smart Control
· Hotel Mode Available

Choose your model.

18K 24K 30K 36K 42K 48K 60K

Where to buy

Cassette 8-way Air Outlet

TCL Light Commercial AC

Cassette 8-way Air Outlet

TCL Light Commercial AC

Eight Dimensions Swing

Comfortable air can supply to every corner. Uniform air supply, reduce the temperature difference, keep the indoor temperature comfortable.

Eight Dimensions Swing

Comfortable air can supply to every corner. Uniform air supply, reduce the temperature difference, keep the indoor temperature comfortable.

Wide Range of Swing Angle

Large louver swing angle, ranges from 0-85°, sends soft air to any corner of the room easily.

*Features, specs and certifications vary by model and region.

Wide Range of Swing Angle

Large louver swing angle, ranges from 0-85°, sends soft air to any corner of the room easily.

*Features, specs and certifications vary by model and region.

Easy to Clean Filter

The filter is very easy to disassemble and clean, keeping the air healthy all the time.

Easy to Clean Filter

The filter is very easy to disassemble and clean, keeping the air healthy all the time.

1200mm Hydraulic Lift

The Cassette has a built-in water pump, the maximum lift can reach 1200mm, which is conducive to the installation of drain pipes.

1200mm Hydraulic Lift

The Cassette has a built-in water pump, the maximum lift can reach 1200mm, which is conducive to the installation of drain pipes.

Reserved Fresh Air Duct

Maximum intake of 15% of fresh air volume make indoor air healthier and more comfortable.

*Features, specs and certifications vary by model and region.

Reserved Fresh Air Duct

Maximum intake of 15% of fresh air volume make indoor air healthier and more comfortable.

*Features, specs and certifications vary by model and region.

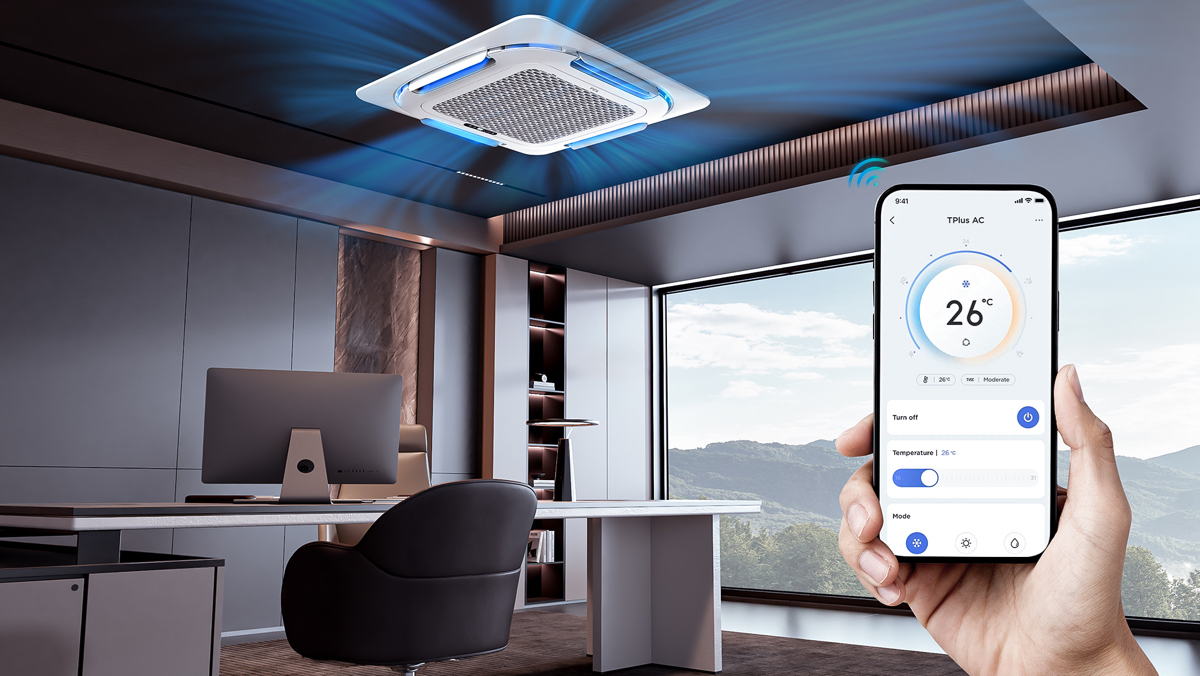

Wi-Fi Operation

Connect the device with one click to turn on.

Wi-Fi Operation

Connect the device with one click to turn on.

Low Noise Design

TCL products through the reasonable air circuit design and 3D fan blade selection, increase the unit airflow and reduce operating noise, which can be as low as 34dB.

*Features, specs and certifications vary by model and region.

Low Noise Design

TCL products through the reasonable air circuit design and 3D fan blade selection, increase the unit airflow and reduce operating noise, which can be as low as 34dB.

*Features, specs and certifications vary by model and region.

Smart Wind

When cooling, let cool air drop from the sky. When heating, let warm air rise from the ground. Smart wind makes you feel comfortable at all times.

Smart Wind

When cooling, let cool air drop from the sky. When heating, let warm air rise from the ground. Smart wind makes you feel comfortable at all times.

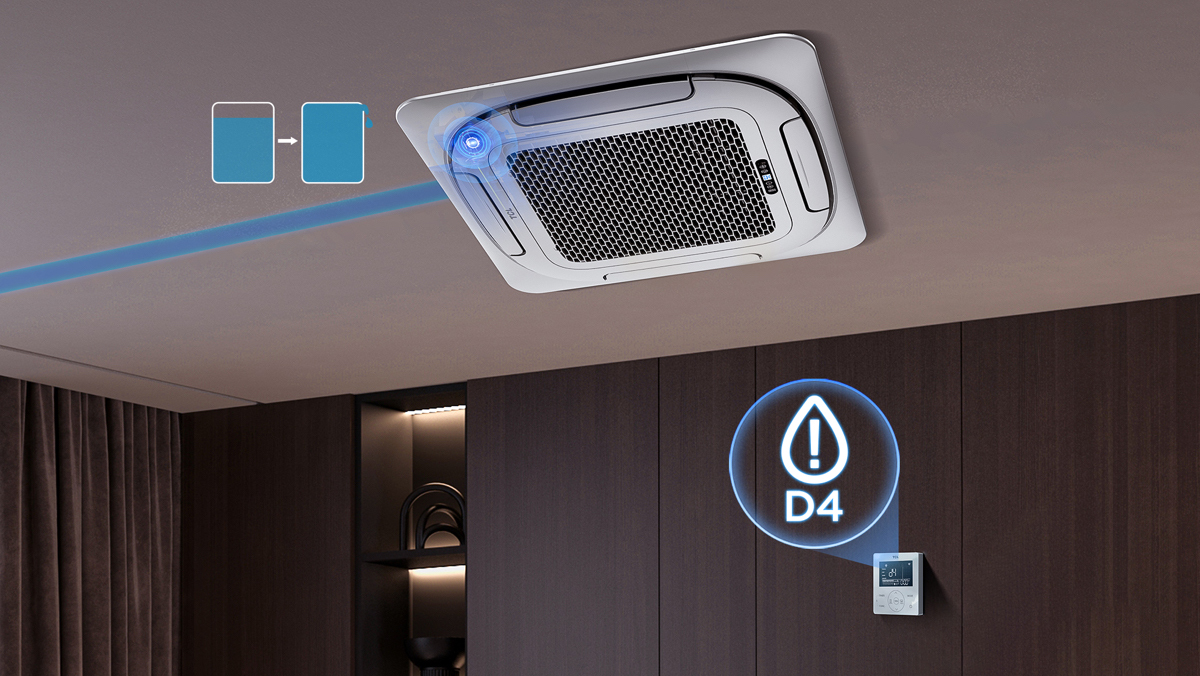

Water-filled Protection

The machine will warn in time if too much condensate accumulates in the internal units, or when there is a problem with the pump.

Water-filled Protection

The machine will warn in time if too much condensate accumulates in the internal units, or when there is a problem with the pump.

HOTEL MODE

Hotel Mode

The AC can be turned on/off through door or window open or shut, or the fire alarm system for emergency control.

*Optional function

Hotel Mode

The AC can be turned on/off through door or window open or shut, or the fire alarm system for emergency control.

*Optional function

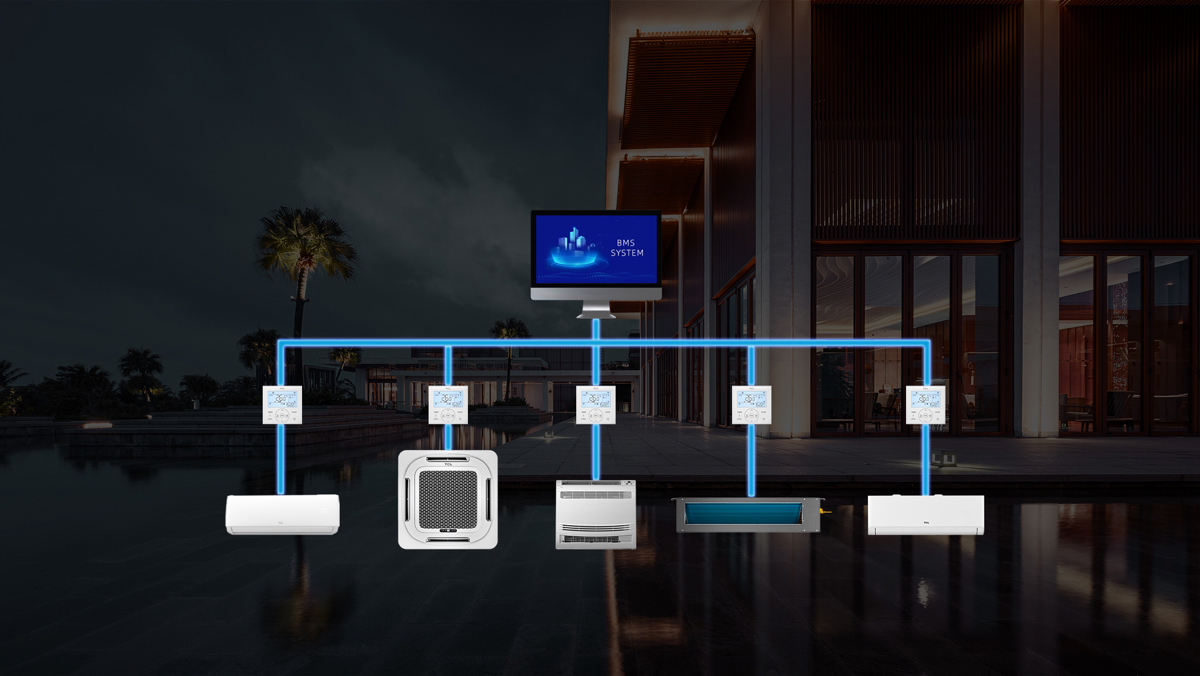

Compliant to BMS System & Airzone

It is compliant to Building Management System and Airzone for more convenient monitoring and control.

*Optional function

Compliant to BMS System & Airzone

It is compliant to Building Management System and Airzone for more convenient monitoring and control.

*Optional function

Wired Controller

It is especially useful in hotel rooms where guests can easily adjust the temperature and settings according to their preferences.

*Optional function

Wired Controller

It is especially useful in hotel rooms where guests can easily adjust the temperature and settings according to their preferences.

*Optional function

Commercial Scenarios

Cassette type system provides appropriate air conditioning for large space with high ceiling and glass-sided without overwhelming the design aesthetic of the interior.

Shopping Mall | Restaurant | School | Office/Studio | Hotel/Guest House

Commercial Scenarios

Cassette type system provides appropriate air conditioning for large space with high ceiling and glass-sided without overwhelming the design aesthetic of the interior.

Shopping Mall | Restaurant | School | Office/Studio | Hotel/Guest House

SPECIFICATIONS

Cassette

Model Name 18TCHC/MEI2

Capacity 18K

Horsepower 2HP

Indoor unit 18TCHC/MEI2

Outdoor unit 18TCHC2

Control type remote controller

Declared cooling capacity (btu/h) 18000(2115~19050)

Declared cooling capacity (W) 5300(620~5580)

Pdesignc (W) 5300

SEER declared (W/W) 6.3

Energy Class A++

Pdesignh Average (W) 4300

SCOP Average declared (W/W) 4

Declare capacity(-10℃) (W) 3300

Annual energy consumption - Cooling (kwh/a) 294

Annual energy consumption - Average (kwh/a) 1505

Moisture removal (Liters/h) 1.5

Indoor sound pressure(S/H/M/L/Mute) (dB(A)) 45/42/39/36/34

Indoor sound pressure(Standard rating conditions) (dB(A)) 42

Outdoor sound pressure(Standard rating conditions) (dB(A)) 52

Power supply Indoor：220-240V~/60Hz/1POutdoor：220-240V~/60Hz/1P

Power supply side Outdoor

Voltage Range (V) 176~265

Cooling Operating current - Indoor (A) 0.5(0.2～1.0)

Cooling Operating Outdoor - Indoor (A) 7.5(1.8～12.0)

Cooling Power consumption - Indoor (W) 60(20～100)

Cooling Power consumption - Outdoor (W) 1625(395～2750)

Max. powercon sump (W) 2850

Max.current (A) 13

Indoor air circulation Cooling/heating (m³/h) 1150/1220

Refrigerant type/Charge/GWP/CO2 equivalent R32/0.95kg/675/0.642tonnes

Connecting Wiring ( Core x Size) outdoor：3*2.5mm²;outdoor to indoor：5*1.5mm²

Connecting Pipe - Gas (Inches) 3/8"

Connecting Pipe - Liquid (Inches) 1/4"

Application area (m²) 20-35

Max. refrigerant pipe length (m) 30

Max. difference in level (m) 15

Operation temperature range (℃) 16-31

Ambient temperature range - Outdoor (℃) Cooling:-15-50/Heating:-15-24

Ambient temperature range - Indoor (℃) Cooling:17-32/Heating:0-30

Net dimensions (W x H x D) - Indoor (mm) 840×840×245

Net dimensions (W x H x D) - Outdoor (mm) 780×605×307

Net dimensions (W x H x D) - Panel (mm) 950x950x45

Net weight - Indoor (kg) 23

Net weight - Outdoor (kg) 30

Net weight - Panel (kg) 6

Packing dimensions (W x H x D) - Indoor (mm) 935×935×305

Packing dimensions (W x H x D) - Outdoor (mm) 890×385×648

Packing dimensions (W x H x D) - Panel (mm) 1055x1055x90

Gross weight - Indoor (kg) 27

Gross weight - Outdoor (kg) 33

Gross weight - Panel (kg) 9
