Model 65S517
TCL 65" Class 5-Series 4K UHD Dolby Vision HDR Roku Smart TV - 65S517
- Dolby Vision HDR
- HDR Dynamic Contrast
- Wide Color Gamut with TCL’s NBP Photon Technology
- Roku TV Smart Platform with thousands of streaming channels
- Enhanced Remote with Voice Control
- High-speed 802.11ac wireless and Ethernet networking
- (3) HDMI 2.0a ports with HDCP 2.2
- Easy Voice Control works with Siri, Alexa, and Hey Google
Suggested Price
$899.99
- Overview
- Specifications
- Downloads
Premium Picture
TCL’s 5-Series marries superior 4K UHD picture quality with Dolby Vision HDR for a stellar imaging experience. The 5-Series’ HDR Dynamic Contrast technology uses information embedded in the Dolby Vision content to optimize every scene for an accurate display of details in the bright and dark areas simultaneously, unlike other HDR formats that have a set brightness level for all content. The 5-Series models’ iPQ Engine™ provides precise color replication while HDR Pro Gamma significantly improves HDR performance in any setting.
4K Picture Resolution
Brilliant 4K resolution delivers stunning detail and a remarkable visual experience.
Dolby Vision High-Dynamic Range
Dolby Vision, the premium HDR experience, offers superior contrast and brighter, more accurate colors.
HDR DYNAMIC CONTRAST
Advanced technology offers striking contrast for brighter whites and darker blacks.
Wide Color Performance
Powered by TCL's NBP Photon technology, 5-Series offers vivid color on top of striking HDR contrast.
iPQ Engine
Precision color performance tailored to deliver accurate color reproduction and optimized DCI-P3 color space coverage
HDR Pro Gamma
Details remain visible in any environment – from the darkest home theater to the brightest sun-lit living rooms

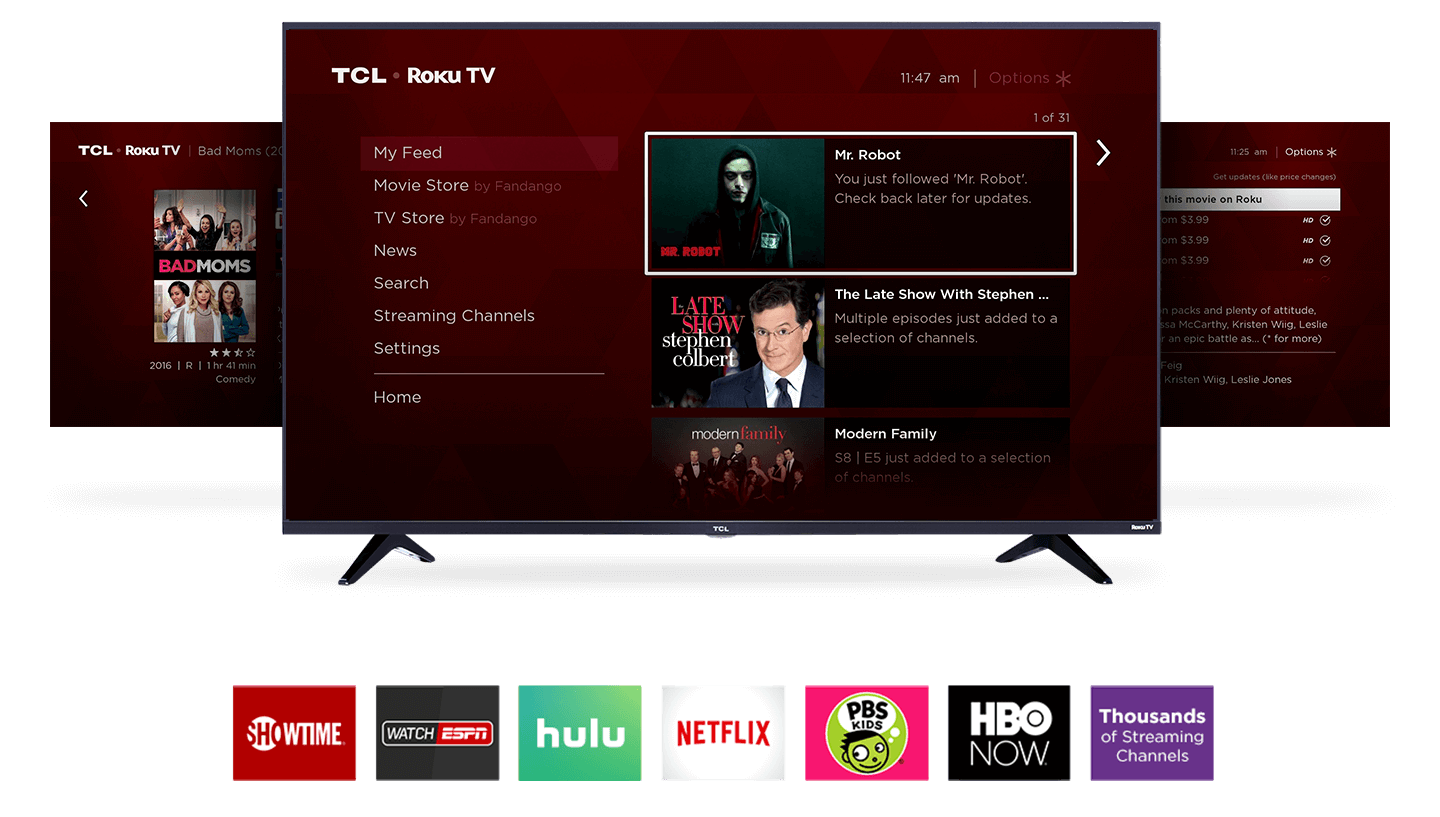

Endless Entertainment
The award-winning Roku TV smart platform providing seamless access to over 500,000 movies and TV shows through a simple, intuitive interface. No more flipping through inputs or wading through complicated menus. All your favorites are at your fingertips from the instant you turn it on. Choose from thousands of streaming channels plus live sports, news, music, kids and family, food, science and tech, fitness, foreign language, and so much more.

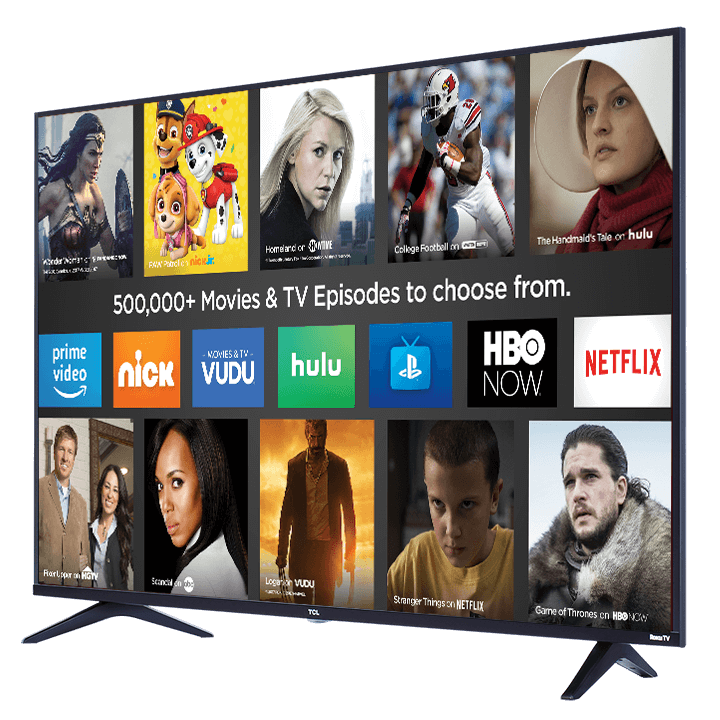

CABLE, ANTENNA & STREAMING FRIENDLY
The best way to watch all of your favorite content – whether you stream it, pay for a cable or satellite subscription, or use the built-in tuner to enjoy free over-the-air channels – the TCL Roku TV makes it easy to enjoy it all.
POWERFUL MOBILE APP
Turn your smartphone or tablet into a convenient streaming companion. Use it as a remote, plug in headphones for private listening, search with your voice or keyboard, and turn your phone into your very own entertainment guide.

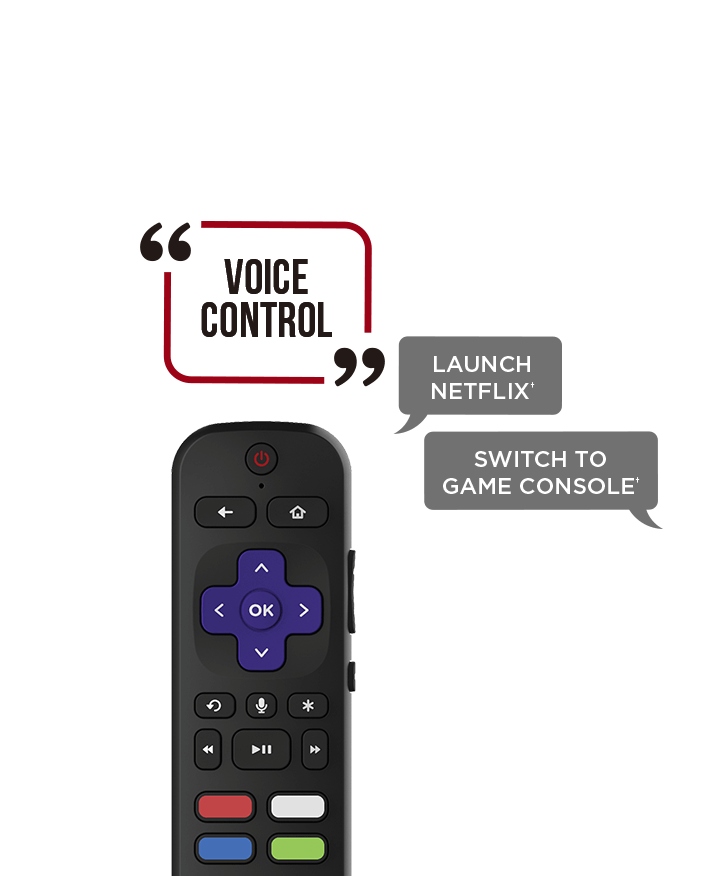

SAY IT. PLAY IT.
Find movie titles. Launch or change channels. Even switch inputs. All with your voice. Just push the button on the remote, or with the Roku mobile app.
Immersive Gaming
For gamers, a responsive TV is just as important as one with a good picture. With 4K resolution, ultra-low lag-time, and Dolby Vision HDR, it offers both premium picture and responsive performance. That’s why it’s the Official TV of the Call of Duty®.
| TCL Series - S517 | |
|---|---|
|
Model Model |
65S517 |
|
Screen Size Screen Size |
65" |
|
Viewable Display Size Viewable Display Size |
64.8" |
|
Description Description |
Premium Picture HDR 4K TV |
|
Wi-Fi Wi-Fi |
802.11ac 2x2 Dual Band (supports 2.4GHz & 5GHz) |
|
Processor Type Processor Type |
CPU: Dual-core / GPU: Dual-core |
| Features | |
|---|---|
|
Advanced PQ Setting with Mobile App Advanced PQ Setting with Mobile App |
Yes |
|
Control Buttons Control Buttons |
Power/Menu, <,> |
|
Multilingual On-Screen-Display Multilingual On-Screen-Display |
English, Spanish, French |
|
Closed Caption Closed Caption |
Yes |
|
Parental Control (V-Chip) Parental Control (V-Chip) |
Yes |
|
Accessible Menu System (CVAA) Accessible Menu System (CVAA) |
Yes |
|
Sleep Timer Sleep Timer |
Yes |
| Audio | |
|---|---|
|
Audio Power (Watts) Audio Power (Watts) |
8W + 8W |
|
Audio Passthrough Audio Passthrough |
Dolby Digital Plus |
|
Dolby Processing Dolby Processing |
Dolby Digital |
| Smart Platform | Signal Format Compatibility |
|---|---|
|
Roku Roku |
ATSC / NTSC / Clear QAM |
| Display | |
|---|---|
|
Clear Motion Index Clear Motion Index |
120Hz CMI |
|
Panel Resolution Panel Resolution |
3840 x 2160 |
|
Resolution Resolution |
UHD |
|
Display Colors Display Colors |
1.07 billion |
|
High Dynamic Range Format High Dynamic Range Format |
Dolby Vision and HDR10 |
| Connections - Inputs/Outputs | |
|---|---|
|
AV Input AV Input |
Composite + L&R Video |
|
Audio Output (RCA) Audio Output (RCA) |
No |
|
VGA VGA |
No |
|
RF Input (NTSC, ATSC) RF Input (NTSC, ATSC) |
1 |
|
Ethernet Ethernet |
1 |
|
USB USB |
1 USB 2.0 |
|
HDMI HDMI |
3 HDMI 2.0 w/HDCP 2.2 (1 ARC) |
|
SPDIF Digital Audio Optical SPDIF Digital Audio Optical |
1 |
|
Audio Output Headphone Audio Output Headphone |
1 |
|
YPbPr (Component Video) Input YPbPr (Component Video) Input |
No |
| Product & Package Information | 65" |
|---|---|
|
Product Size (WxHxD) with Stand Product Size (WxHxD) with Stand |
57.2" x 35" x 11.6" |
|
Product Size (WxHxD) without stand Product Size (WxHxD) without stand |
57.2" x 32.8" 2.8" |
|
Stand Separation Distance Stand Separation Distance |
49.4" |
|
Product Weight with stand (lbs) Product Weight with stand (lbs) |
49.2 lbs |
|
Product Weight without stand (lbs) Product Weight without stand (lbs) |
48.3 lbs |
|
Package Size (WxHxD) (inches) Package Size (WxHxD) (inches) |
64.8" x 39.4" x 8.1" |
|
Total Package Weight (lbs) Total Package Weight (lbs) |
68.3 lbs |

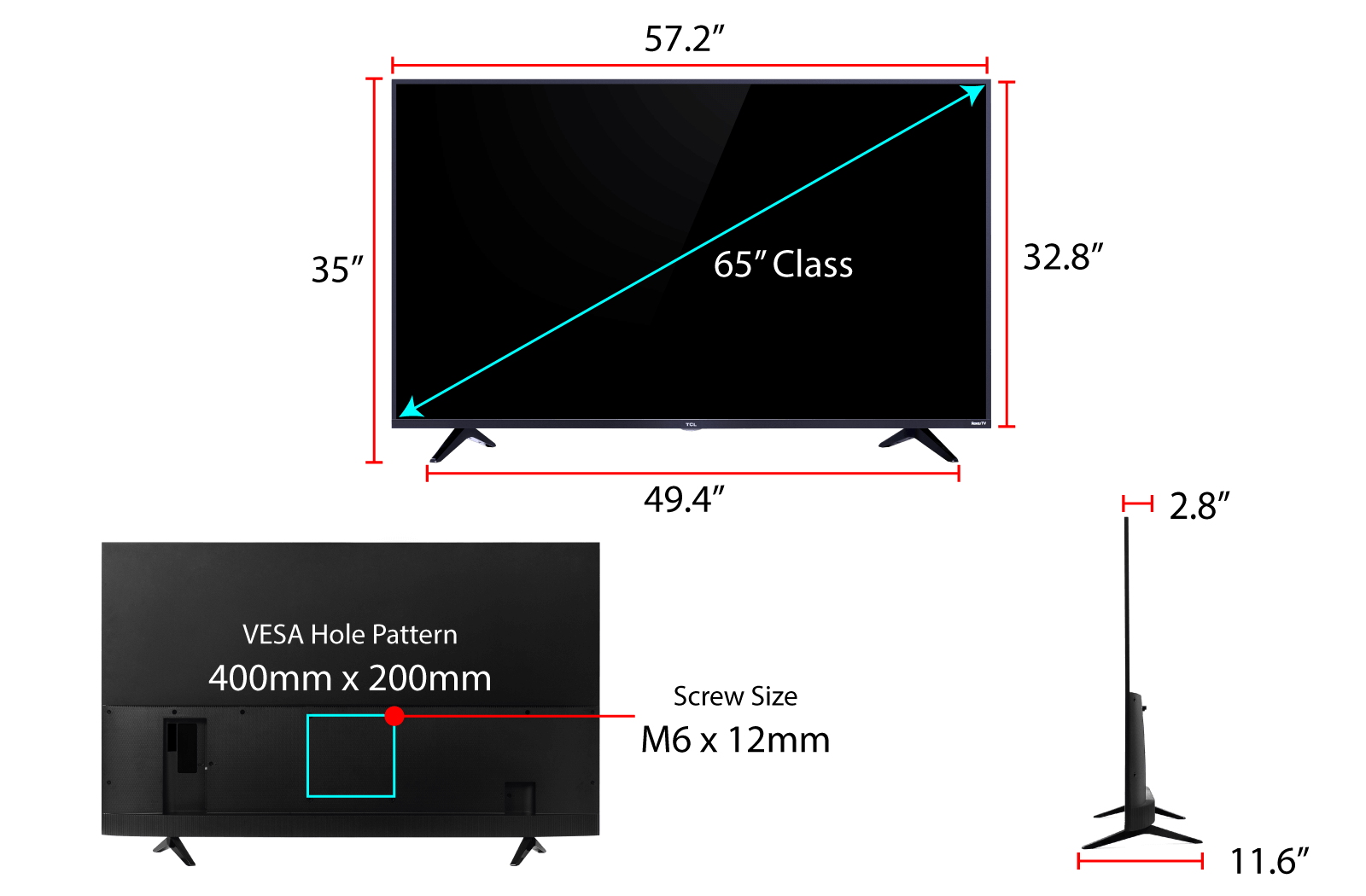

| VESA Mounting Specifications | |
|---|---|
|
VESA Hole Pattern VESA Hole Pattern |
400mm (V) x 200mm (H) |
|
Screw Size Screw Size |
M6 x 12mm |
| Base Stand Specifications | |
|---|---|
|
Screw Size (Qty) Screw Size (Qty) |
25mm |
| Energy Information | |
|---|---|
|
Energy Star Energy Star |
No |
|
Standby Power Standby Power |
＜0.5W |
| Accessories (Included) | |
|---|---|
|
Warranty Info / Quick Start Guide (QSG) Warranty Info / Quick Start Guide (QSG) |
1/1 English |
|
Remote Control Remote Control |
Roku TV RC580 |
|
Remote Control Battery Remote Control Battery |
Two "AAA" |
| Warranty |
|---|
|
1 year limited warranty 1 year limited warranty |
