Model MS1G3PACK

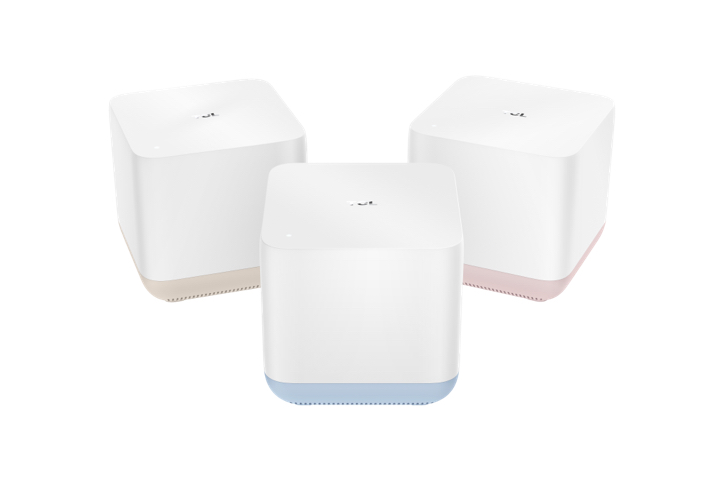

LINKHUB Mesh WiFi AC1200 - 3 Pack

  • Cover up to 4,300 sq. ft. with a set of three routers
  • Easy set-up and management
  • Supports up to 100 users simultaneously
  • Stream 4K/8K videos with ultra-fast Wi-Fi
  • Dual-band 2.4GHz & 5GHz connectivity
  • Guest access for temporary connections
LINKHUB Mesh Wi-Fi AC1200 - 3 Pack
2 Pack
3 Pack

COVER YOUR ENTIRE HOME WITH OUR RELIABLE MESH WI-FI SYSTEM

LINKHUB Mesh Wi-Fi gives you a whole-home connection that’s highly customizable and effortless to set up. Say hello to an easy-to-manage, ultra-fast and reliable connection with no dead zones throughout your home.

STABLE WHOLE-HOME WI-FI SYSTEM

The LINKHUB Mesh Wi-Fi system provides coverage up to 4,300 sq. ft. with a set of three routers. Arrange them throughout your home and eliminate dead zones when you move from one room to another. Experience the freedom to stream 4K/8K videos on multiple devices at the same time with boosted coverage and ultra-fast Wi-Fi.

SEAMLESS COVERAGE

Enjoy seamless Wi-Fi coverage with one network name for your entire LINKHUB Mesh Wi-Fi System. Featuring dual-band (2.4GHz & 5GHz) connectivity for faster wireless performance, as well as separate guest access for temporary connections. Whether you are video conferencing for work, or the kids are taking online classes, you can count on a strong, uninterrupted connection for all.

MULTIPLE USER CONNECTIVITY

MU-MIMO & Beamforming technology allows each connected device its own dedicated full-speed Wi-Fi connection, ensuring multiple devices can access the network simultaneously without slowing it down. The 3-pack LINKHUB Mesh Wi-Fi can support up to 100 users simultaneously, making it an ideal solution for large homes and small businesses alike.

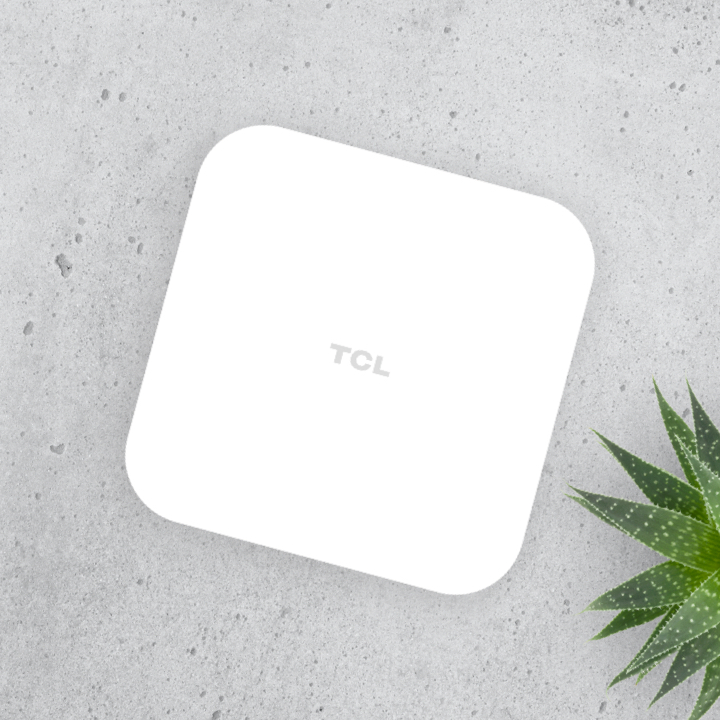

EFFORTLESS SETUP

Start browsing, streaming and working quickly with LINKHUB Mesh Wi-Fi System’s pre-pairing factory settings. Choose any unit to connect to Ethernet and all settings will automatically sync with the rest of the pack. Then all you need to do is decide where to place them.

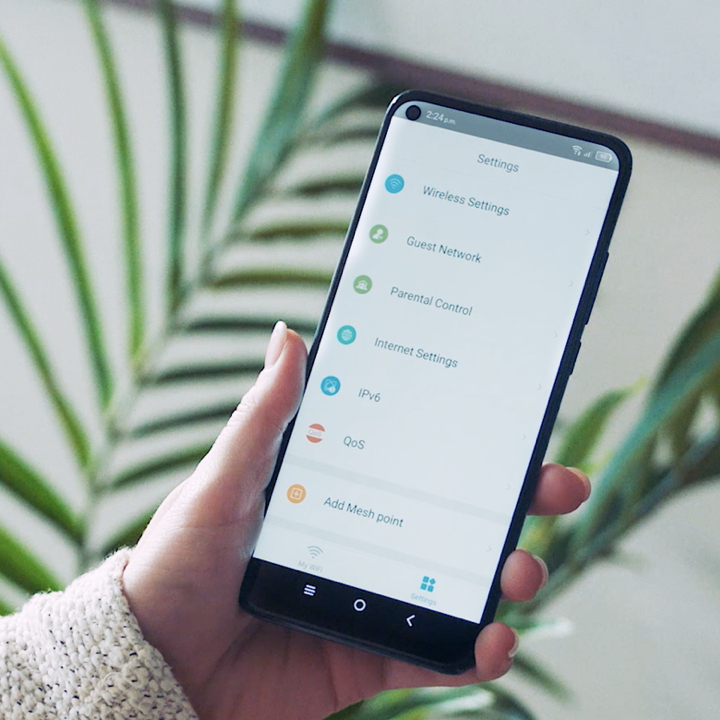

EASY MANAGEMENT

Manage your network with ease using the mesh system’s dedicated TCL WIFI app. This convenient app lets you modify network access, change password, create a guest network, or schedule Wi-Fi breaks for young children.

Flash

Flash

16MByte Nor Flash

SDRAM

SDRAM

128MByte DDR3(Main chip built-in)

Interface

Interface

1*10/100/1000Mbps WAN/LAN Port

1*10/100/1000Mbps LAN Port

1* 3.5mm DC in( 12V 1A)

Power Supply

Power Supply

12 VDC / 1A

Button

Button

Reset/Wps Hole

LED  Indicator

LED  Indicator

1* System/Power/Mesh  Blue

Antenna

Antenna

2* 3dBi internal antennas（2.4G*2 + 5G*2）

Dimensions (L x W x H)

Dimensions (L x W x H)

103x103x100mm

Wireless Standards

Wireless Standards

IEEE 802.11ac/a/n 5GHz

IEEE 802.11b/g/n 2.4GHz

Mesh Standards

Mesh Standards

IEEE802.11s

Roaming standards

Roaming standards

IEEE802.11v/r

Ethernet Standard

Ethernet Standard

IEEE802.3

IEEE8.3u

IEEE802.3ab

Data Rate

Data Rate

2.4GHz: Up to 300Mbps

5GHz: Up to 867Mbps

Wireless Security

Wireless Security

64/128-bit WEP, WPA and WPA2

Frequency band

Frequency band

2.4GZ or 5GHz, MiMo 2x2

Wifi user amount

Wifi user amount

3in1 up to 100 wifi users.

Certification

Certification

CE

FCC

Wi-Fi Alliance

RoHS

WEEE
